TCY New Aftermark VOE14531093 VOE14508165 VOE14569653 SA1143-01100 Final Drive EC460B EC460BLC Apply to Volvo Excavator
Product description
| Model: EC460B EC460BLC DH500 ect. | Part name:Final drive |
| Part NO.:VOE14531093 VOE14508165 VOE14569653 SA1143-01100 170402-00023 2401-9229A | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:Excavator Final Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

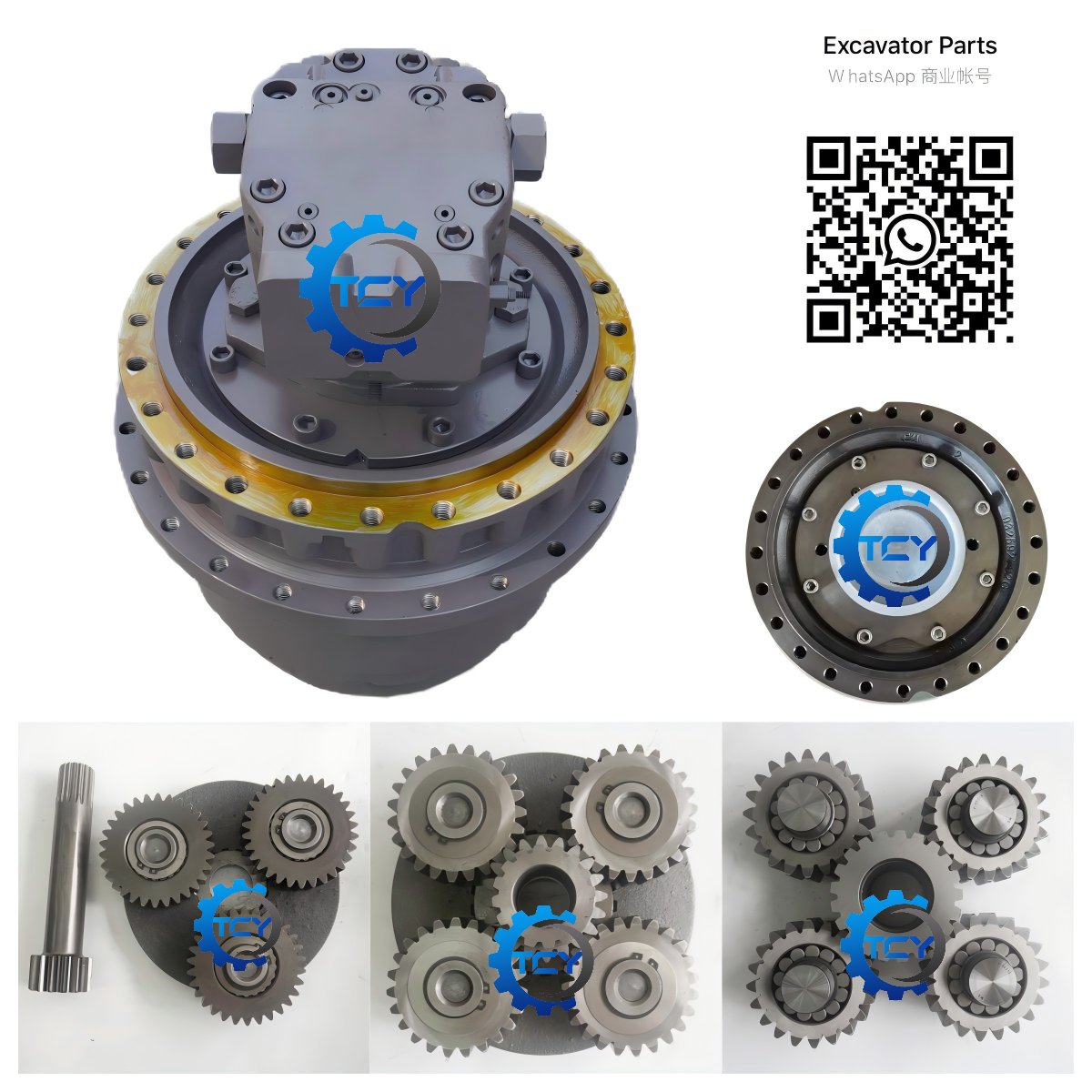

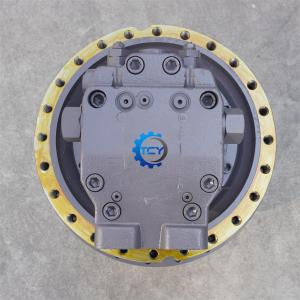

Product Show
| Pos. | Part No | Qty | Parts name |
| - | 170402-00023 | [2] | |
| - | 2401-9229A | [2] | GEAR;REDUCTION |
| 1. | S2218461 | [16] | BOLT;SOCKET M14X2.0X40 |
| 10. | 2.234-00007 | [1] | 2ND.RED |
| 11. | 2.403-00274 | [1] | GEAR;SUN |
| 12. | S2290973 |
[4] | |
| 13. | 2.234-00008 | [1] | 3RD.RED |
| 14. | 2.408-00040 | [4] | BUSH |
| 15. | 2.109-00086 | [1] | BEARING |
| 16 | 400602-00599 |
[1] | |
| 16. | 2.180-00158 |
[1] | GASKET;LIFETIME |
| 17. | 401003-00082 | [1] | |
| 18. | 900122-00030 | [1] | |
| 19. | 2.405-00072 | [1] | BRAKE;SHAFT |
| 2. | 2.181-00342 | [2] | PLUG;BREATHER M22X1.5 |
| 20 | 400813-00014 | [7] | |
| 21. | 2.115-00436 | [6] | RING;STEEL |
| 22 | 2.180-01036 |
[1] | RING;BACK-UP 4.65X191.21 |
| 23. | 2.180-00502 | [1] | O-RING 5.33X189.87 |
| 24. | 2.180-00503 | [1] | O-RING 5.33X215.27 |
| 25 | 2.115-00430 | [1] | RING;SPIRAL |
| 26. | 2.409-00096 |
[1] | PISTON |
| 27. | 2.131-00229 |
[21] | SPRING |
| 28 | 2.114-00760 | [1] | SPACER |
| 29 | 2.124-00059 |
[1] | CIRCLIP |
| 3. | 2.114-00885 | [2] | WASHER |
| 30 | 2180-1217D165 | [1] | O-RING 3.53X266.29 |
| 31. | 430215-00087 | [1] | |
| 32. | 2.120-00479 | [8] | SCREWM16X35-8.8 |
| 33. | 401002-00210 | [1] | |
| 34. | 2.120-00478 | [2] | SCREWM20X50-8.8 |
| 35 | 2.180-00504 | [1] | O-RING 1.78X8.74 |
| 36. | 401009-00005 | [1] | |
| 37. | 2180-1217D48 | [1] | O-RING 2.62X12.37 |
| 4. | 2180-1217D174 | [1] | O-RING 3.5X380.59 |
| 5. | 2.161-00019A | [1] | |
| 5. | 2.161-00019 | [1] | PAD |
| 6. | 110508-00771A | [1] | |
| 6 | 110508-00771 | [1] | |
| 7. | 2.403-00272 | [1] | GEAR;SUN |
| 8. | 2.234-00006 | [1] | 1ST.RED. |
| 9 | 2.403-00273 | [1] | GEAR;SUN Z=20 |
Exhibition
Factory Show
Shipping
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
